WDS-650 Infrared BGA Rework Station Repair Motherboards Soldering Repairing

Name: WDS650 Infrared BGA Rework Station Repair Motherboards Soldering Repairing
Brand: Wisdomshow
Price: 4780 USD

Wholesale WDS-650 Infrared BGA Rework Station Repair Motherboards Soldering Repairing from china suppliers

Brand Name : Wisdomshow

Model Number : wds650

Certification : CE/ISO

Place of Origin : China

MOQ : 1 Set

Price : USD4780 set/sets

Payment Terms : Western Union, MoneyGram

Supply Ability : 5000sets/year

Delivery Time : 3-7 days

Packaging Details : 82*72*89cm wooden case

Product name : WDS-650 bga rework station

Function : Repair Motherboards

Power supply : AC 220V+-10% 50/60Hz

PCB size : Max470*380mm Min10*10mm

Chip size : Max70*70mm Min1*1mm

PCB thickness : 0.3-5mm

Mounting precision : +-0.01mm

Temperature interface : 3pcs

Contact Now

Product Description

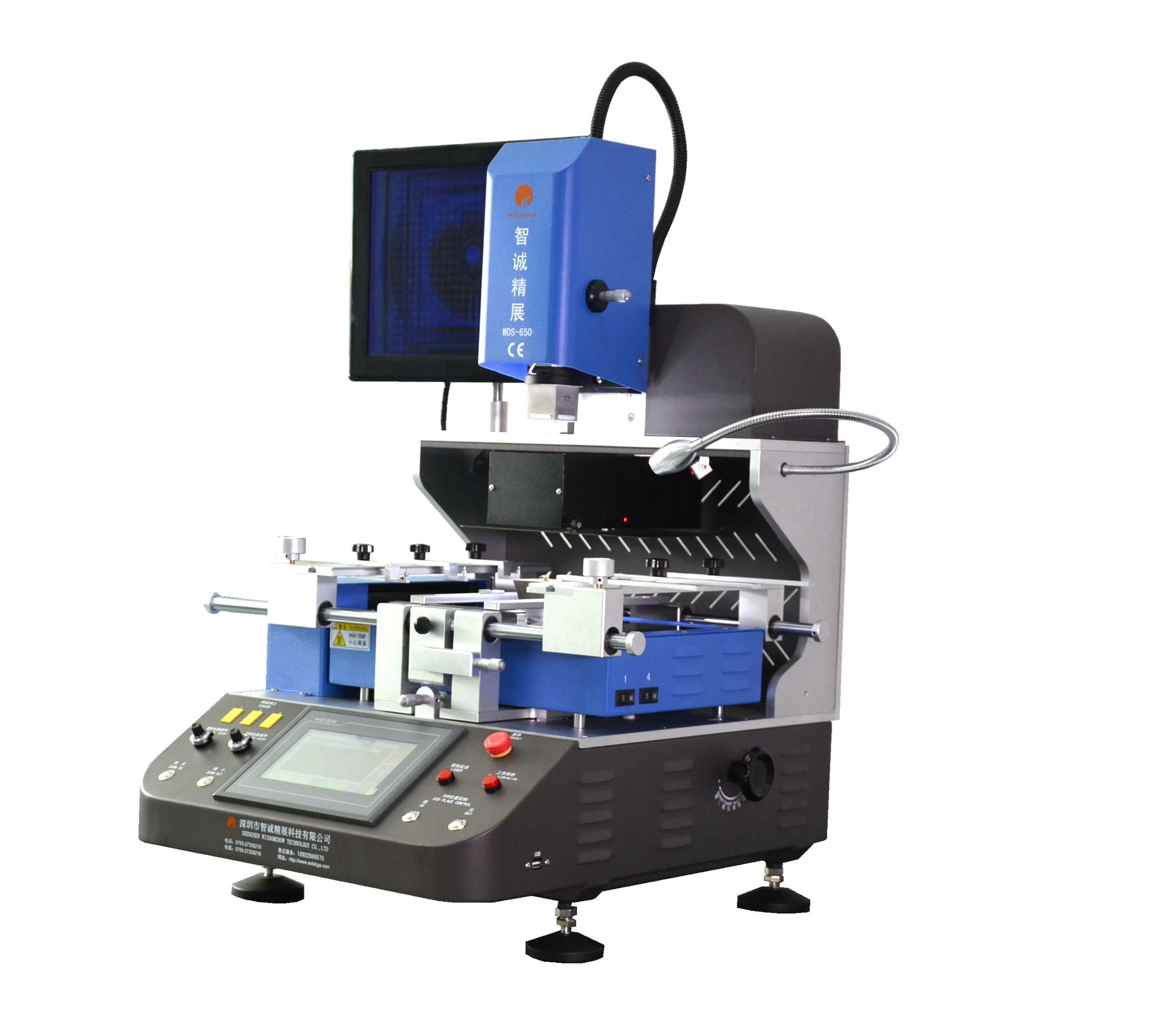

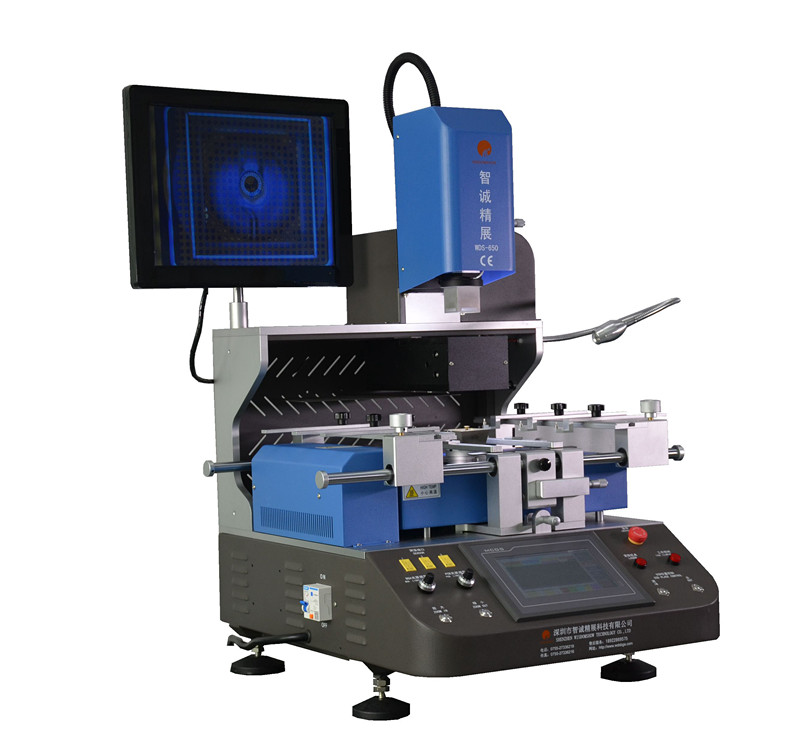

WDS-650 Infrared BGA Rework Station Repair Motherboards Soldering Repairing

Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone,xbox360,ps3,etc.
 The main user is repairing shops and factory to provide the after-sales service and rework.

Main Features

BGA Rework Station
 Model:WDS-650
 ♦ 5 working modes
 ♦ 15’’ HD LCD monitor
 ♦ 7’’ HD touch screen
 ♦ CCD color optical alignment system
 ♦ Laser light for positioning
 ♦ Infrared preheat tubes + hot air heating areas
 ♦ HD camera comes in & out automatically by button
 ♦ Tenperature accuracy within ±1℃
 ♦ Mounting precision within ±0.01mm
 ♦ Repair success rate: 99% +

Independent 3 heating zones temperature control system

The upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB; bottom IR heating, temperature precision control within ±1℃.8 segment temperature control independently.
Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system; 4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification ,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

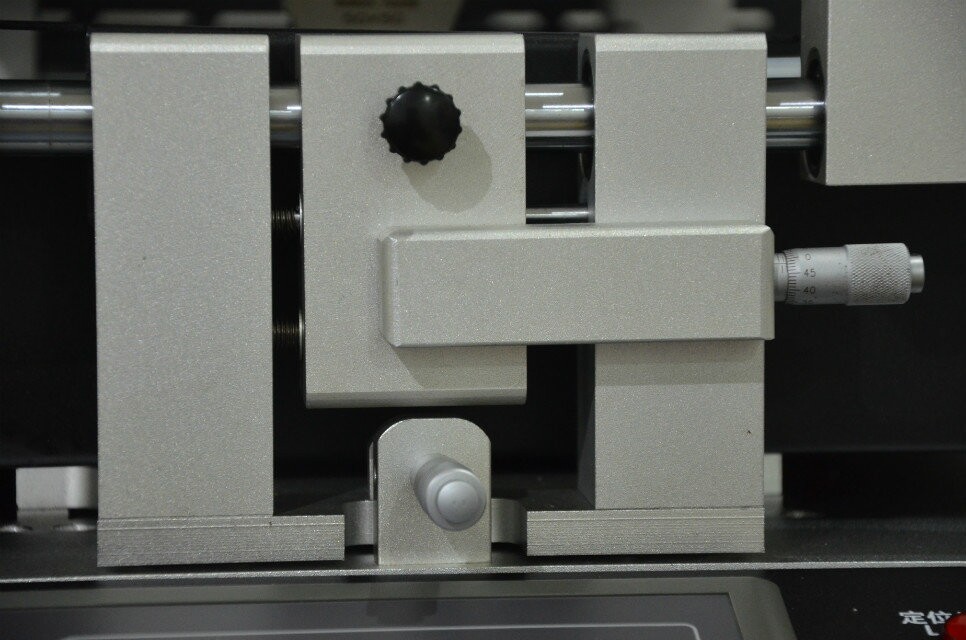

2.X,Y and R angle adopted micrometer fine tuning,accuracy locating,precision can reach ±0.01mm.

Superior safety protection function

With the alarm function, after the BGA welding, the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter has password protection to prevent any modification.

How to separate BGA chip from motherboard?
How to replace a new BGA chip?

Repair steps:
 1) Separate the BGA chip from motherboard –we called desoldering
 2) Clean Pad
 3) Reballing or replace a new BGA chip directly
 4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
 5) replace a new BGA chip - we called Soldering

Power supply	AC 220V±10％ 50/60Hz
Total power	Max 6400W
Heater power	Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 4000W
Electrical material	Driving motor+PLC smart temp.controller+color touch screen
Temperature controlling	(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃
Locating way	V shape slot,PCB support jigs can adjust,laser light do fast centering and position
PCB size	Max 410×380mm Min10×10mm
Applicable chips	Max 70×70mm Min1×1mm
Overall dimension	L600×W640×H850mm
Temperature Interface	1 pcs
Weight of machine	60KG
Color	White&blue
Work mode	5 modes for choose,auto/manual work mode can be changed freely

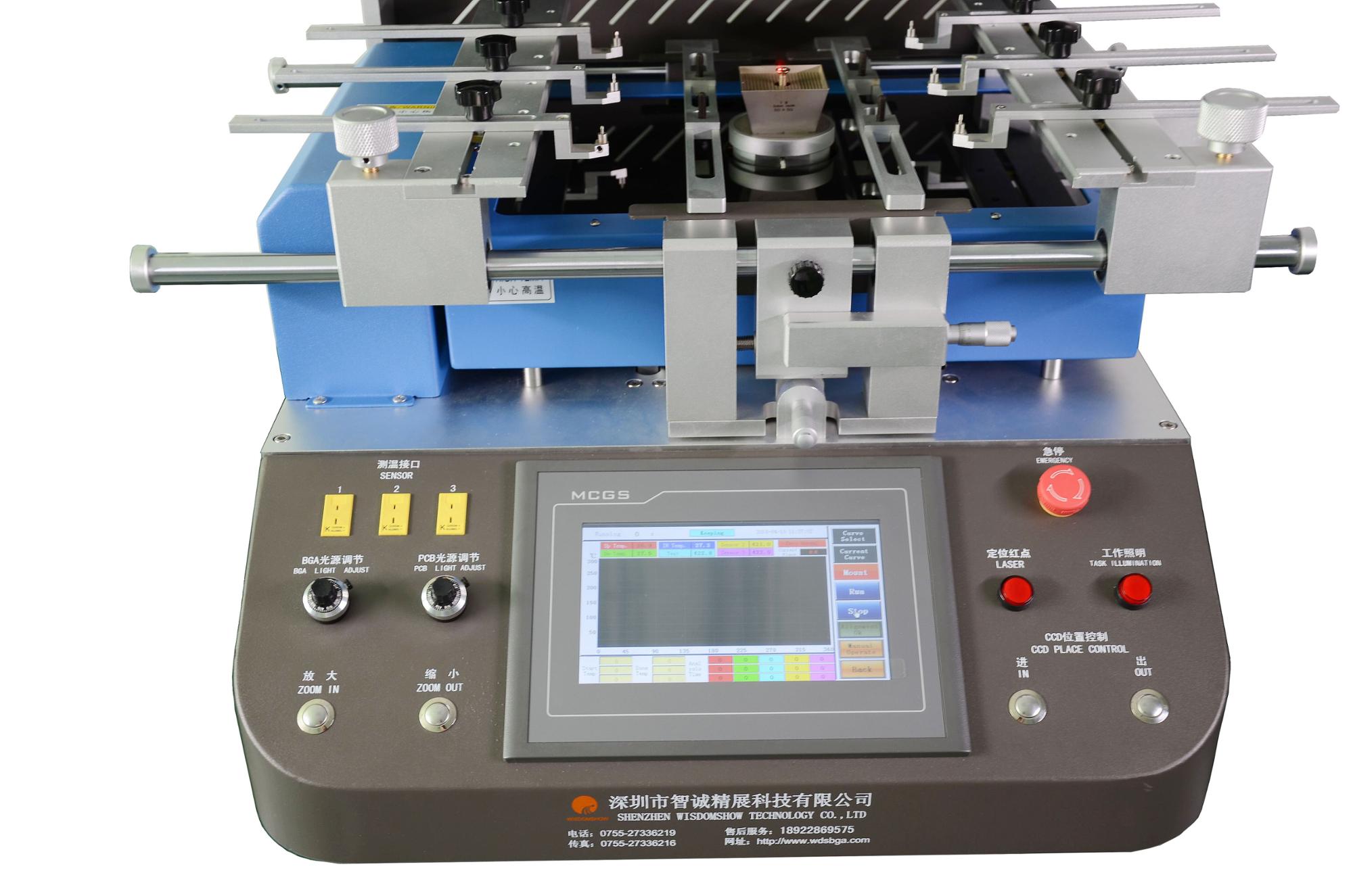

Detailed Images

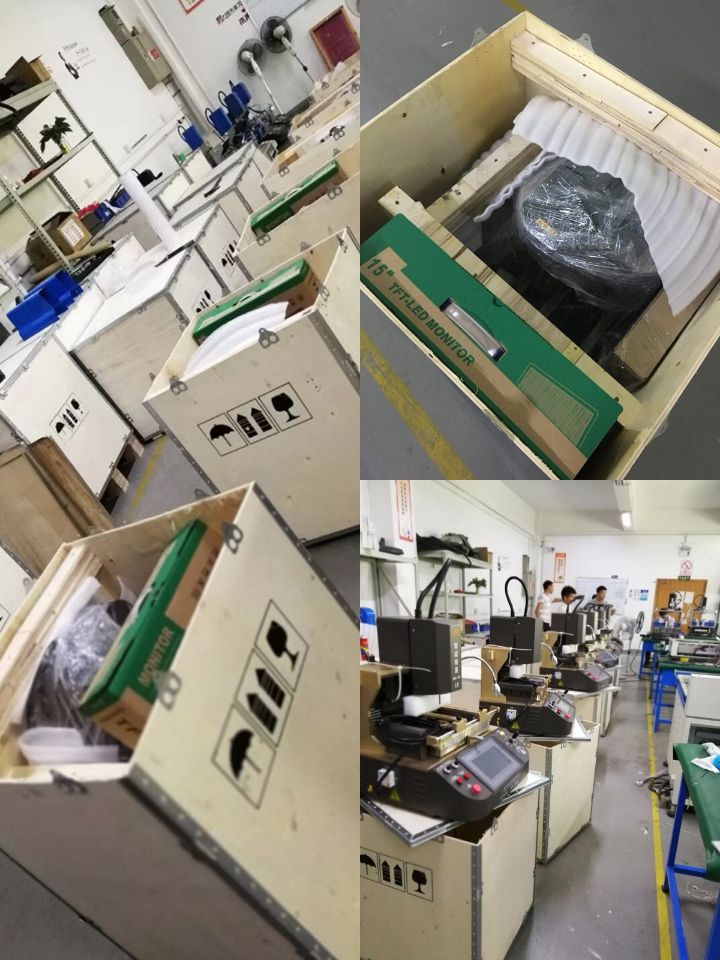

Packing&Shipping

1, Standard Export Wooden cases
 2, Delivery in 2 workdays after payment confirm;
 3, Shipping by TNT,DHL,FEDEX , or by air or by sea
 4, Loading port: Shenzhen or Hongkong.

Our Services & Advantages

1. 24 hours technical support by email or calling;
 2. Warranty:one year free,but all the other relative cost should be on the buyer's account;3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,we will arrange engineers to show you the operation;
4.Friendly English User manual provided; Good and professional after-sales service.
Order NowIf any questions please send INQUIRY or CHAT with us ,
 We will be glad to service you !
 Now you can order freely!!!
 Plz Contact me as below guide, we are glad to give you the best price!
